Drive system

The term “driveline” denotes an assembly comprising the engine, clutch, gearbox, drive shaft and axle differential. Depending on the exact concept, hybrid vehicles also have other components such as one or more electric motors, a battery and a generator.



Driveline design: how the components interact

On vehicles with a hybrid drive system, an internal combustion engine is combined with an electric drive machine. The internal combustion engine converts thermal energy, and the electric motor converts electric energy, into mechanical force and uses it to drive the vehicle.

This is where the gearbox comes into play, as it provides several gears for driving the vehicle. Due to the various gears in the gearbox, the internal combustion engine remains within a certain speed and consumption range while it is powering the vehicle.

The drive shaft transmits the drive forces to the axle differential. These components (which are also called the “axle drive”) come with a fixed transmission ratio – i.e. one without gears – which optimises how the drive forces are transmitted to the wheels.



Several drive type options are available for vehicles with a hybrid drive:



Series drive

The internal combustion engine drives a generator. The electric motor then uses the electrical energy from the generator to power the vehicle. As such, the power is transmitted in series here: internal combustion engine, generator, electric motor



Parallel drive

Both the internal combustion engine and the electric motor drive the drive wheels. The power from the drive units is added together. The power flows in parallel from the internal combustion engine and/or electric motor.



Split-power drive

A split-power drive combines the series and parallel concepts. With this system, the drive can either be provided solely by the electric motor (serial energy conversion by means of internal combustion engine and generator) or by the electric motor with the internal combustion engine in parallel.



Range extender

The use of a range extender is another option supported by hybrid technology. It is a small internal combustion engine with a generator. If the battery is discharged, it provides the energy for the electric drive power.



It goes without saying that the driveline has to meet very extensive requirements. The driveline must:

  • transmit the engine’s power,
  • distribute the drive forces to the wheels,
  • combine reliability and comfort in one,
  • be subject to low levels of wear,
  • work quietly and as efficiently as possible.

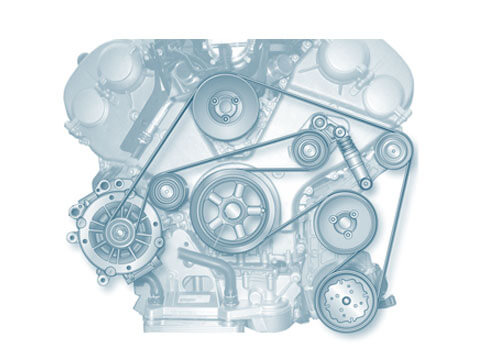

Accessory drive

Function The accessory drive is responsible for driving ancillary components such as the alternator, the power steering pump, the water pump or the air conditioning compressor. V-belts or a V-ribbed belts are used to...

Read more

All-wheel drive

With an all-wheel drive, the drive power of a vehicle is transferred to the road by being distributed across all of the wheels.

Read more

Axle boot

Axle boots are plastic or rubber bellows that cover the joints of a drive shaft.

Read more

Battery

The accumulators or batteries of electric cars and hybrid vehicles supply electric energy to the electric motor(s). This energy is then converted into the mechanical kinetic energy required for propulsion.

Read more

Battery cooling in electric vehicles

In electric and hybrid vehicles, battery cooling ensures that the lithium ion batteries are kept within an optimum temperature range.

Read more

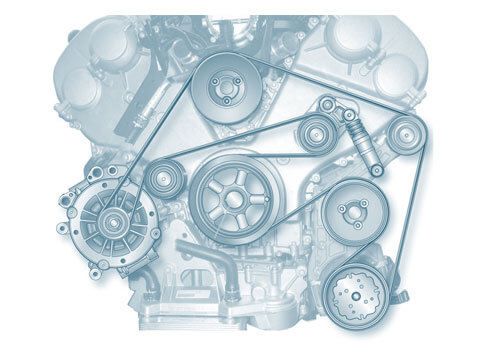

Belt drive components

Belt drives can be found in every modern engine. They must transmit the rotation of the crankshaft to and drive the engine control or ancillary components. The use of toothed belts to drive camshafts...

Read more

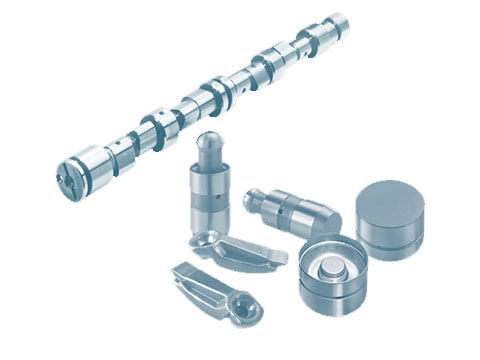

Camshaft

The camshaft is a mechanical component of an internal combustion engine. It opens and closes the inlet and exhaust valves of the engine at the right time, with the exact stroke and in a precisely defined sequence.

Read more

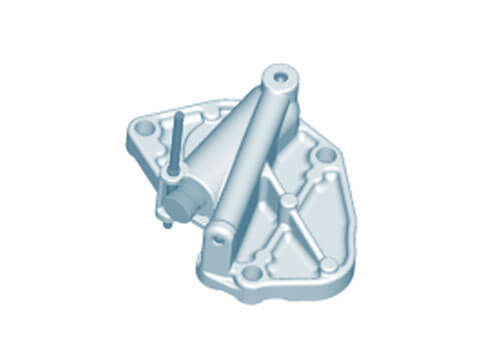

Chain drive

The chain drive in combustion engines must transmit the rotation of the crankshaft to the camshafts, thus ensuring that the valves open and close reliably and at exactly the right time. A chain is used as...

Read more

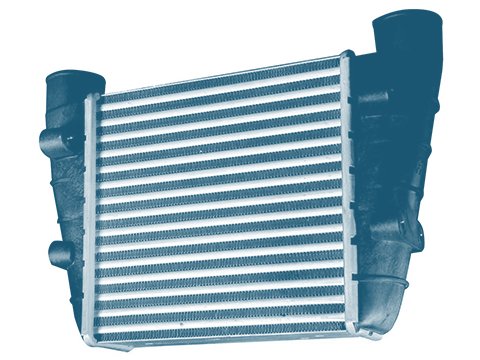

Charge-air cooler

Charge-air coolers are tasked with the reducing the elevated temperature of inducted fresh air, which increases due to the compression process in turbocharged engines.

Read more

Connecting rod

The connecting rod converts the linear up and down movement of the piston into the circular motion of the crankshaft and is therefore subject to tension, compression, bending and buckling.

Read more

Coolant

Energy is converted into heat in internal combustion engines. This heat needs to be discharged to ensure that the engine does not overheat. The engine cooling system is tasked with this function. In this system, the liquid coolant absorbs the heat and conveys it to the radiator, which gives off the heat.

Read more

Cooling (engine cooling)

In a combustion engine, the bulk of the energy contained in the fuel is converted into heat. If this heat is not effectively dissipated to the outside, the engine overheats and serious damage is caused to the engine mechanics.

Read more

Crankshaft

Combustion of the fuel-air mixture in the engine produces power. This power is transformed into rotary movement of the crankshaft.

Read more

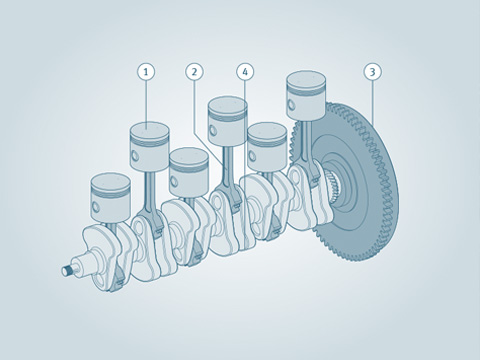

Crankshaft drive

The crankshaft drive is the complete mechanism which converts the up and down movement of the piston in the engine into the rotary motion of the crankshaft.
Function

Read more

Cylinder deactivation

Cylinder deactivation refers to a system which reduces the fuel consumption of internal combustion engines. Its function involves some of the cylinders in the engine being temporarily stopped.

Read more

Cylinder head

The cylinder head is an engine component which seals the top of the combustion chamber. It is mounted on top of the engine housing.

Read more

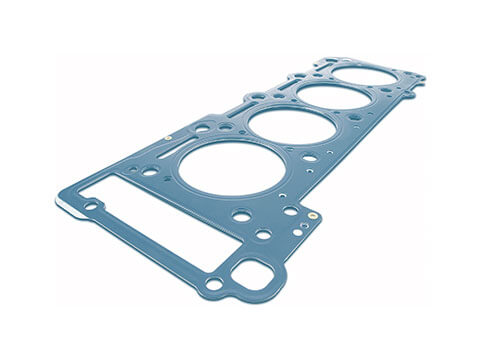

Cylinder head gasket

A cylinder head gasket is a complex high-tech component primarily designed to keep the various media such as water and oil apart in the engine, as well as providing an external seal.

Read more

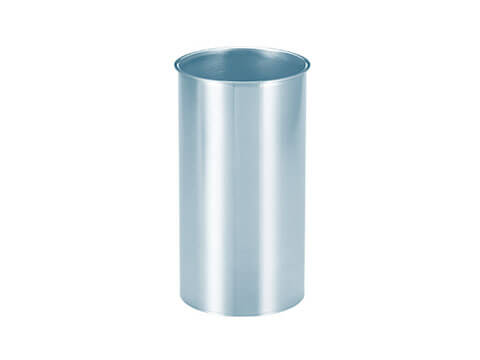

Cylinders

In combination with the piston and the cylinder head, the cylinders of a combustion engine form the working space and combustion chamber. The cylinders are also charged with the task of...

Read more

Differential

The differential, to be more precise the “differential gear”, is tasked with compensating for the differences in wheel speed on driven axles when cornering.
Function

Read more

Drive shaft

The function of the drive shaft is to transfer the engine torque from the gearbox or differential to the wheels. It must also compensate for all variations in angle or length resulting...

Read more

Dual-mass flywheel

Modern engines can be driven at extremely low speeds. The trend is towards increasingly higher engine torques. Furthermore, bodies are getting quieter and many components getting...

Read more

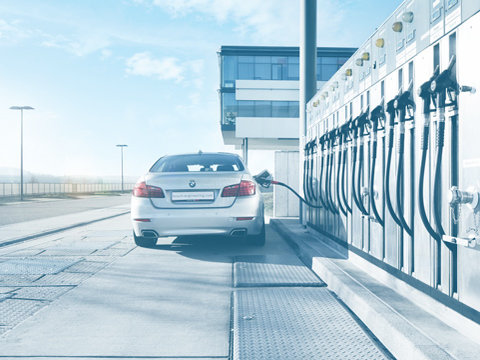

E-Fuels

E-fuels are synthetic fuels that are produced exclusively using renewable energy. E-fuels allow CO2-neutral operation of internal combustion engines.

Read more

eAxle

The eAxle is a solution for the electric drive of battery-electric vehicles and hybrid applications. eAxles combine individual components such as motor, axle and transmission into one unit.

Read more

Electric motor

On vehicles with a hybrid drive system, an internal combustion engine is combined with one or more electric motors. The electric motor converts electric energy into mechanical force and uses it to drive the vehicle.

Read more

Electronically switchable engine mount

In vehicles, the engine mounts create a connection between the engine and the body. In contrast to conventional engine mounts, electronically switchable engine mounts can be actively controlled, and can thereby adapt to different situations.

Read more

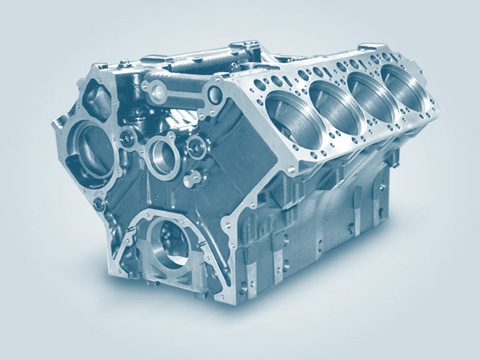

Engine block

As the engine casing and cooling jacket, the engine block is the central element of an engine. In the

Read more

Engine control

Four-stroke engines rely on sophisticated gas exchange to run safely, efficiently and with low emissions. This means that during the intake stroke as much fresh air or fuel/air mixture as possible must...

Read more

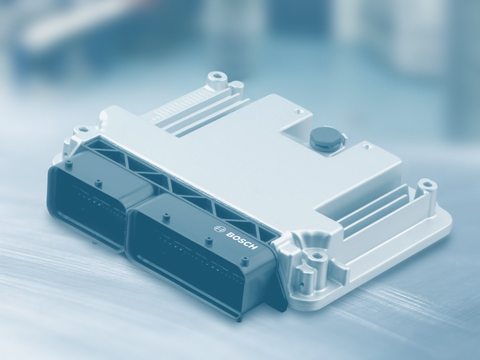

Engine control unit

The engine control unit is at the core of modern engine control systems. It controls the fuel supply, air control, fuel injection and ignition.

Read more

Engine mounts

In vehicles, the engine mounts create the connection between the engine and the body.

Read more

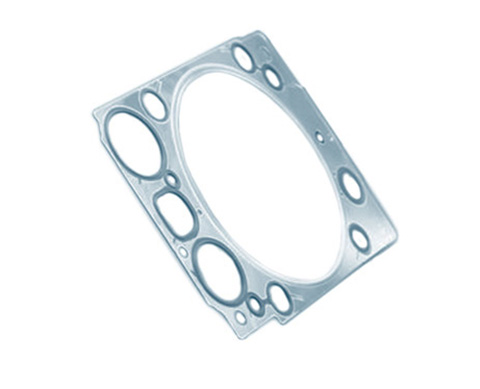

Engine sealing technology

The engine gasket is a key component. It contributes to efficient, safe and cost-effective engine running. Gaskets are highly technical and complex engine components. They are used in many different forms and material compositions in modern combustion engines and assemblies (gearboxes, axles, etc.)...

Read more

Exhaust turbocharger

The exhaust turbocharger compresses the air supplied to the engine. Compared with naturally aspirated engines, cylinder filling is much better. Engine performance is increased whilst at the same...

Read more

Flywheel

The flywheel is an element in the crankshaft drive which is tasked with compensating for engine rotational irregularities and overcoming so-called idle strokes and dead centres through the absorbed kinetic energy. The flywheel mass on the flywheel therefore ensures that the engine runs smoothly, even at low speeds.

Read more

Fuel Pump

The fuel pump is located at the fuel tank and is designed to convey the required quantity of fuel from the tank to the engine at the necessary pressure.

Read more

Gearbox

Gearboxes convert the torque from an engine into the traction required to drive the vehicle. In electric and hybrid vehicles, gearboxes take the form of electric axle drive systems.

Read more

Gearbox

Gearboxes convert the torque from an engine into the traction required to drive the vehicle. By providing various transmission ratios, they enable the speed of the engine to be adapted to different driving situations.

Read more

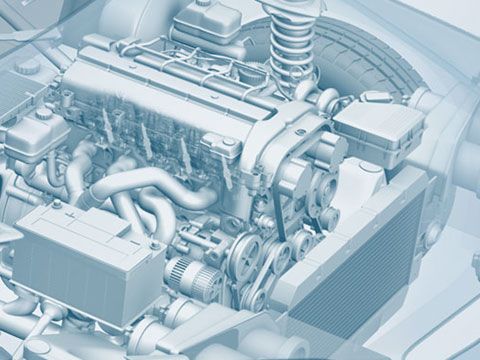

Glow time relays

Diesel engines are compression-ignition engines. This means that an additional heat source is not needed to ignite the mixture in the cylinder. In the cylinder, the air/diesel mixture is highly compressed...

Read more

Hybrid drive

The hybrid drive combines the combustion engine with an electric motor. Readiness for start of production of the first vehicles with hybrid drive is the result of the perfect combination of the very latest technologies...

Read more

Hydraulic clutch actuator

The clutch actuator is part of the overall clutch system and can operate either mechanically or hydraulically.

Read more

Internal combustion engine

An engine is a machine that generates kinetic energy from thermal, chemical or another type of energy. In hybrid vehicles, the internal combustion engine is combined with one or more electric motor(s).

Read more

Longitudinal shaft

The longitudinal shaft or cardan shaft is a very important component for rear-wheel drive and all-wheel drive. Its task is to transmit the torque from the engine/gearbox unit to the axle differential...

Read more

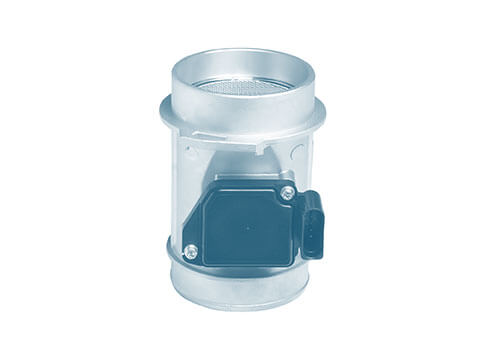

MAF sensor

The correct relationship between air mass and fuel quantity is of significance with respect to compliance with emission standards. The purpose of an MAF sensor is to determine the air mass and pass on the values to the engine management system.

Read more

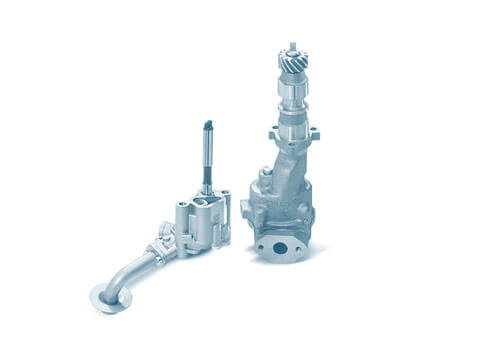

Oil pump

The oil pump is responsible for conveying the oil for engine lubrication and building up the oil pressure in the lubrication system.

Read more

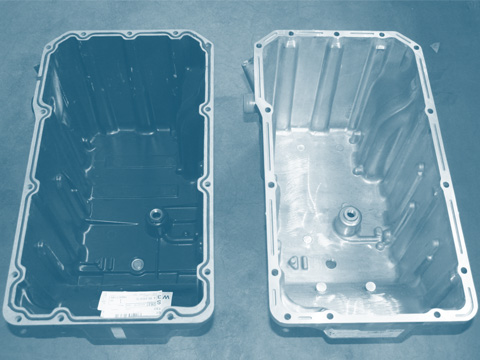

Oil sump

The oil sump is a component of the engine lubrication system in motor vehicles. It is also known as the oil tray.

Read more

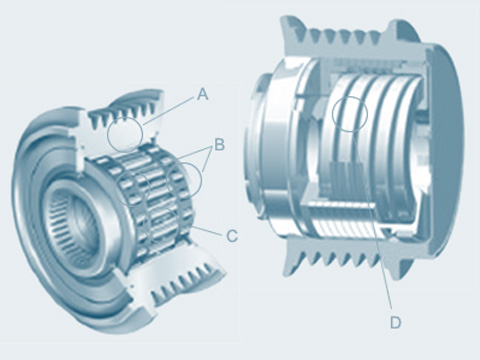

Overrunning alternator pulley

The overrunning alternator pulley is a more advanced development of the fixed pulley on the alternator. It ensures that the belt drive operates quietly and smoothly.

Read more

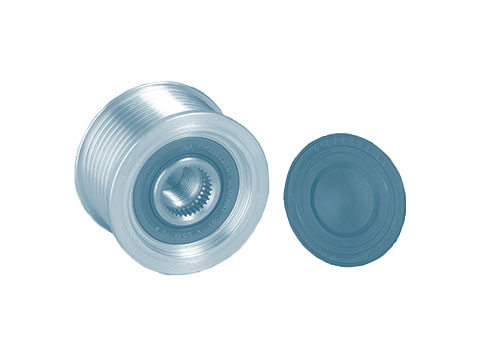

Overrunning belt pulleys

Function unlike electric motors, combustion engines exhibit non-uniform rotation. The four-stroke principle dictates that the crankshaft is continuously accelerated and decelerated the accessory drive...

Read more

Petrol direct injection

Petrol direct injection is a term used to describe a method of fuel injection for petrol and diesel engines. The process involves injecting fuel directly into the combustion chamber.

Read more

Pistons

During the operating cycle of a combustion engine, the energy bound in the fuel is converted into heat and pressure in the cylinder in a very short space of time. This process is explosive in nature. It causes the temperature and pressure...

Read more

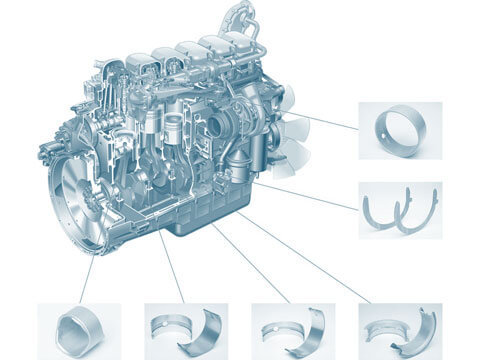

Plain bearings

Function Plain bearings support and guide moving components inside the engine. Their primary purpose is to facilitate the virtually wear-free rotation of these components. Plain bearings comprise one...

Read more

Power electronics

In electric and hybrid vehicles, the power electronics control the electric drive and provide the connection between the electric motor and the high-voltage battery. They also convert the direct current (DC) for the electric motor provided by the battery into high-voltage alternating current (AC) voltage.

Read more

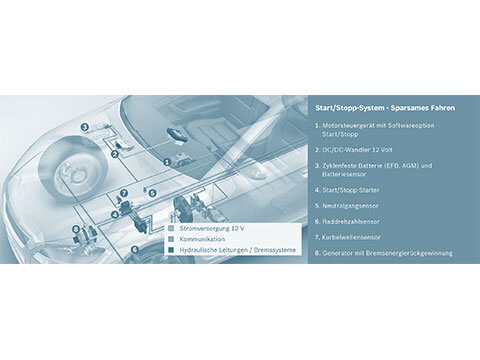

Stop-start system

A stop-start system is an automatic system designed to reduce fuel consumption.

Read more

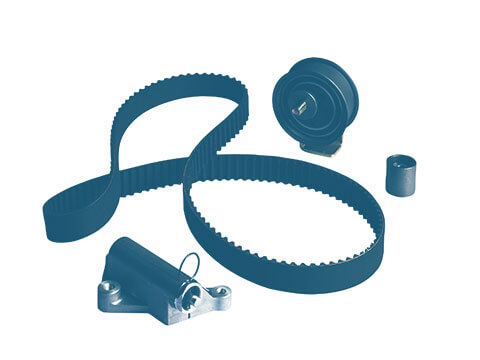

Tensioning pulleys and deflection rollers

In modern engines, the vast majority of ancillary components such as alternators, power steering pumps, water pumps and air conditioning compressors are driven by V-ribbed belts. Toothed belts are...

Read more

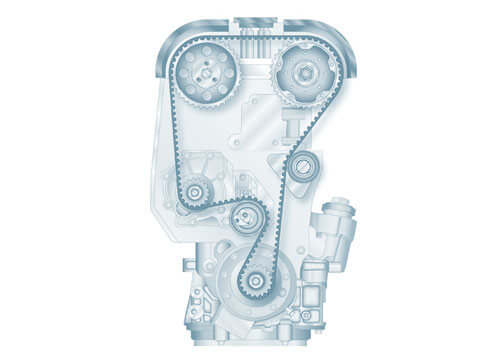

Timing drive

The timing drive must drive the camshafts and thus control the opening and closing of the valves. The timing drive can be implemented with a belt drive, a timing chain or spur gears. These timing options all...

Read more

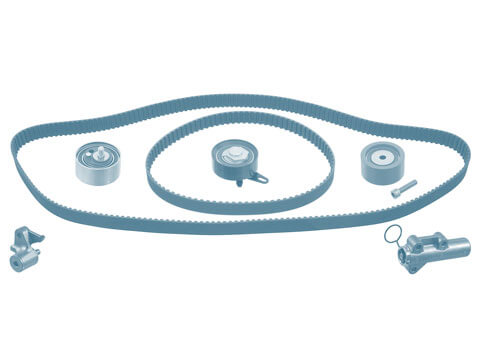

Toothed belt

The toothed belt controls the precision combustion process in the engine. It is driven by the crankshaft and controls the camshaft, which actuates the valves. The valves must be opened and closed at the correct time...

Read more

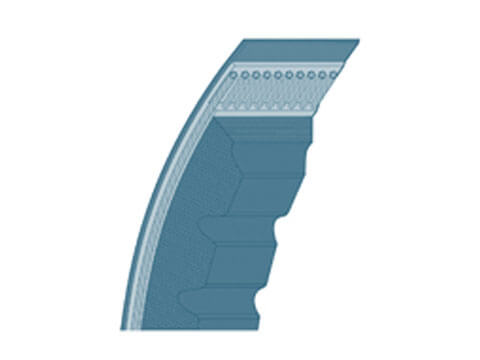

V-belts

The V-belt acts as a transmission belt. Connecting the V-belt pulleys, it transmits the force from the engine to the ancillary components including the alternator, the hydraulic pump for the power steering.

Read more

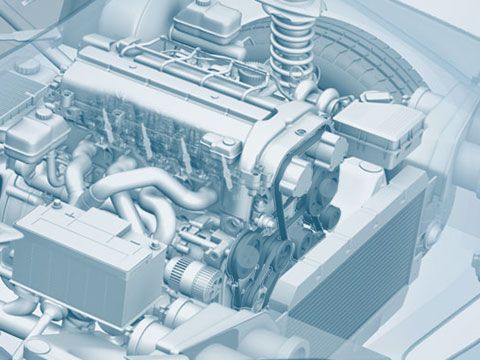

V-ribbed belts

The V-ribbed belt is a further development of the V-belt and works according to the same principle: It acts as a transmission belt, connects the V-belt pulleys and transmits the force from...

Read more

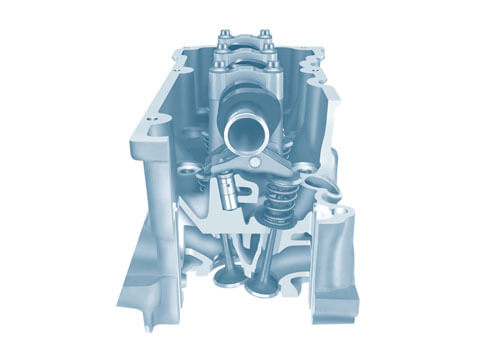

Valves

Valves seal off the combustion chamber and optimise gas exchange. As they are constantly in motion - and this under difficult tribological conditions and under the effect of aggressive gases or...

Read more

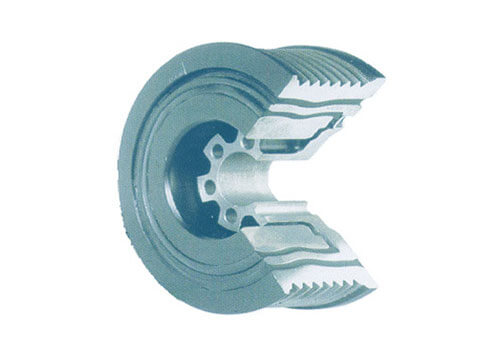

Vibration dampers
